¶ Collet Kit

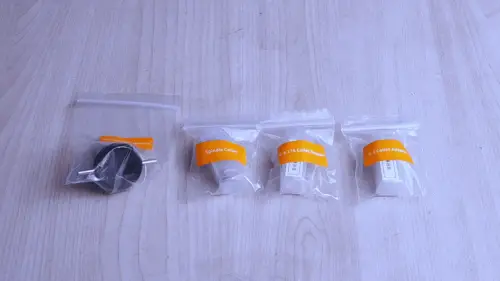

¶ 1. Accessory List
- ✅ 6mm collet × 1
- ✅ Reduction sleeve × 1
- ✅ Wrench × 1
- ✅ Fixed screw × 1
Accessory contents as follows:
¶ 2. Collet Installation

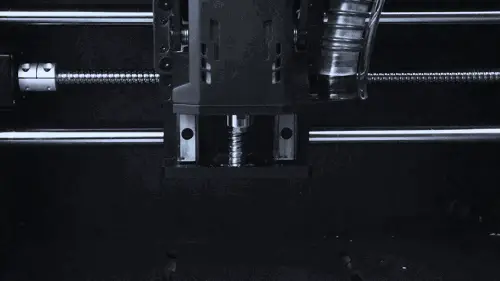

¶ 2.1 Remove Old Collet
First, you need to remove the existing collet from the spindle:

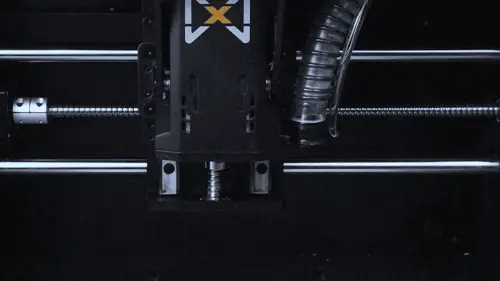

¶ 2.2 Take Out New Collet
Remove the new 6mm collet from the package:

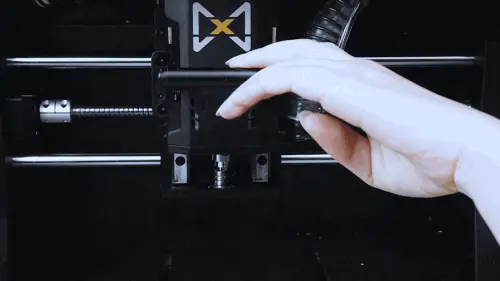

¶ 2.3 Tighten Collet
Install the new collet onto the spindle and tighten with wrench:
¶ 3. Tool Clamping

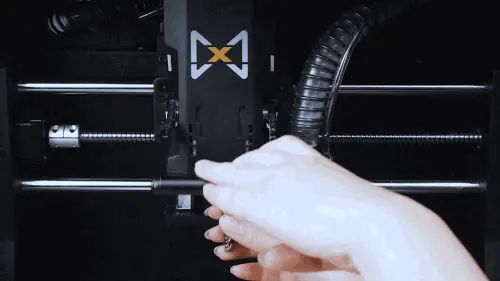

¶ 3.1 6mm Tool Clamping
The 6mm collet is specifically designed for clamping 6mm diameter tools:

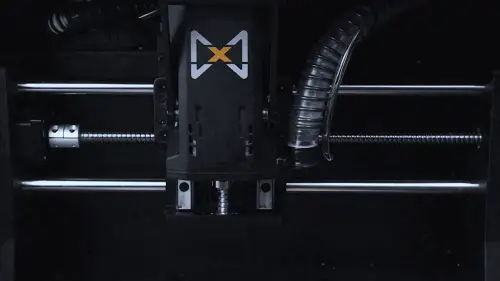

¶ 3.2 Using Reduction Sleeve
Using the reduction sleeve allows clamping tools of different sizes, expanding the collet's range of application:
¶ 4. Precautions
⚠️ Safety Reminder
- When installing and removing the collet, ensure the machine has completely stopped operating
- Use appropriate wrench force to avoid overtightening and damaging threads
- Regularly check collet wear and replace promptly
- After tool installation, check clamping tightness
- Reduction sleeve and collet must fit completely to avoid looseness
💡 Usage Tips
- 6mm collet is specifically for 6mm diameter tools, cannot be used for other sizes
- Keep collet clean, regularly remove chips and oil
- When not in use for long periods, remove collet and store properly
- Reduction sleeve can adapt to smaller diameter tools, expanding usage range
