¶ Jaw Vise
¶ 1. Accessory List
- ✅ Fixed screws × Several
- ✅ Wrench × 1
- ✅ Jaw vise × 1

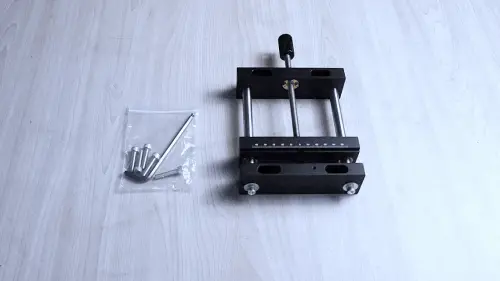

Accessory contents as follows:
¶ 2. Installing the Jaw Vise

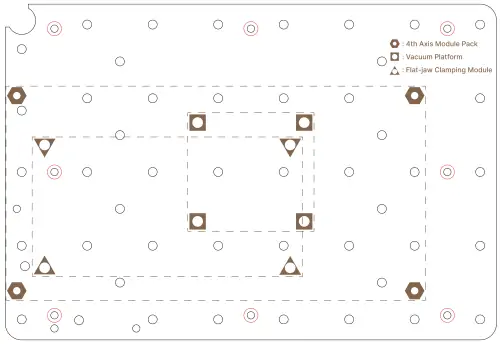

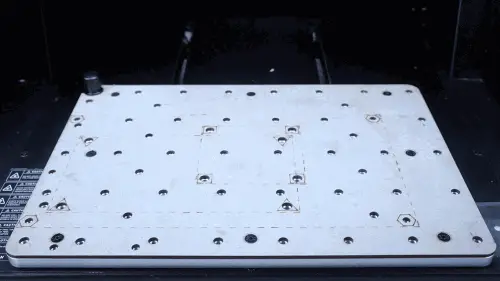

Use the screws from the accessories to fix the rotation axis at the positions shown in the diagram.
¶ 3. Usage Method
Rotate the handle to open the jaws, insert workpieces of different sizes; rotate the handle again to secure the workpiece.
⚠️ Usage Precautions:
- Before clamping the workpiece, clean the jaws thoroughly
- The jaw vise itself has a certain height. If the total height of the object being processed is too high, the spindle needs to be raised. Please raise it correctly according to the proper method
- When securing metal workpieces, it is recommended to use the wrench, insert it into the hole of the handle to assist rotation, tighten as much as possible. And try the workpiece's firmness by hand

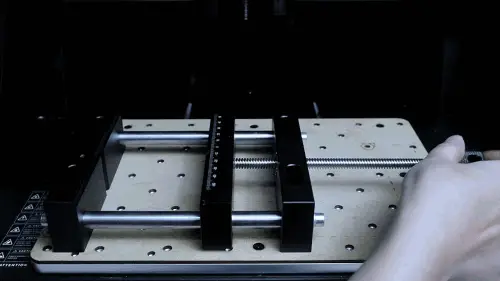

Example of securing aluminum block:
