¶ HiMill D1S Spindle Issues
¶ Spindle Not Rotating
¶ Possible Causes
- Loose motor driver connection wires
- Spindle motor failure
- Software setting issues (e.g., device in laser mode)
¶ Solutions
-

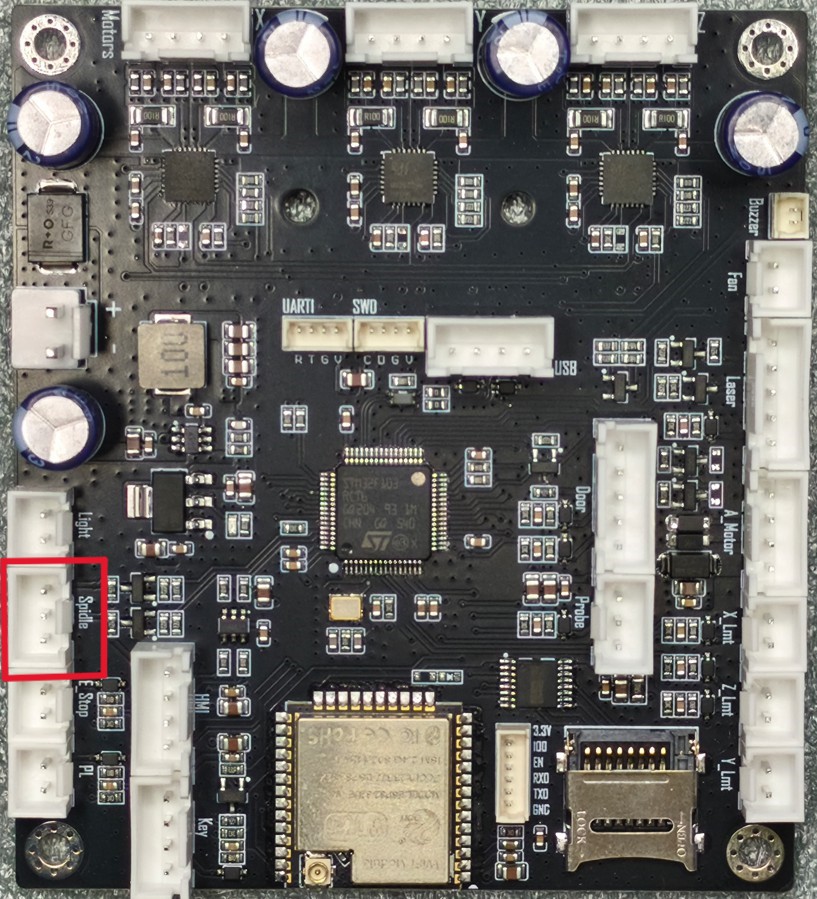

Check if the motor driver signal wires are loose and try reconnecting them. For cover removal steps, refer to the video for replacing the main control board HiMill D1S Replace Air Cabinet Components
-
Check if the spindle speed settings in the software are reasonable
-
Confirm if the device was just used with the laser and if it is currently in laser mode
-
If the issue persists, contact support@maxmaketech.com
¶ Spindle Stops Immediately After Starting
¶ Possible Causes
- Spindle bearing failure
- Motor driver failure
- Excessive processing load
¶ Solutions
- Check if the processing load is too high, and appropriately reduce the cutting depth or feed rate
- Check if the motor driver signal wires are loose and try reconnecting them
- Restart the device and try again
- If the issue persists, contact support@maxmaketech.com
